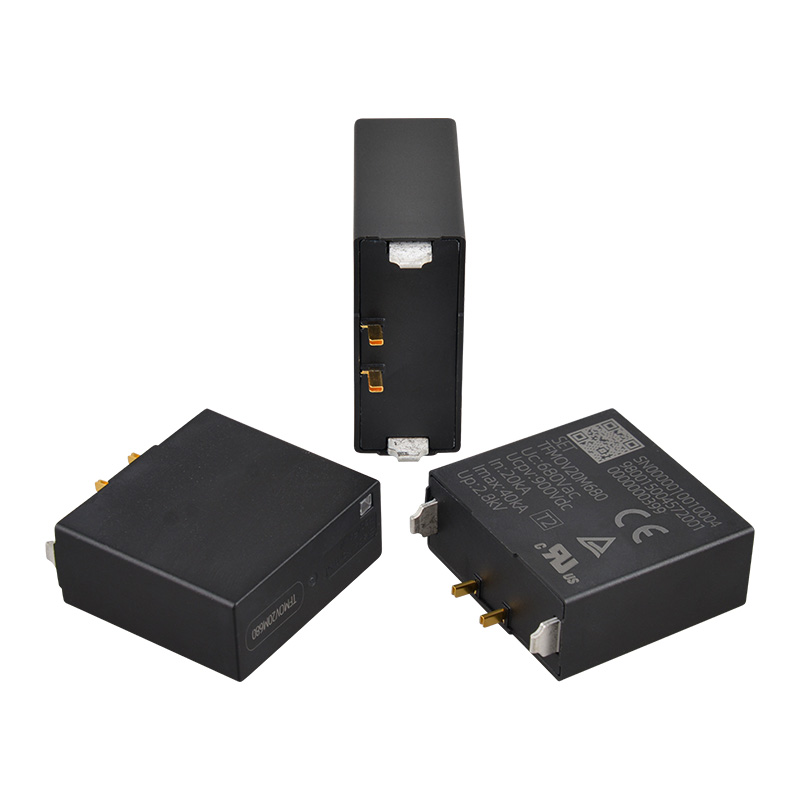

TFMOV is a combination of varistors (MOV) and thermal protection component. Since varistor has the characteristics of aging or degrading; TFMOV can separate the varistor from the main circuitry by opening the thermal protection component when the varistor (MOV) degrades or fails. It is often used in which requires high reliability and weather withstanding, such as photovoltaic inverters, communication equipment, and power supplies in data centers, etc.

● Mechanical Trip Thermal Protection and Fast Response

● Small Size, Space Saving

● With Remote Signal Contact

● High Energy Capacity

● Sealing Material, Flame-retardant to V0 (UL 94)

● Comply whit UL 1449

● RoHS & REACH Compliant

Through Hole

Solder Pin

You can download the 3D diagram of product structure to help you improve design efficiency to create more great products.

TFMOV20M series_3D_TFMOV_SETsafe & SETfuse.zip

● Communication, Microcell

● Photovoltaic, String Inverter

● Power Supply, UPS

● Surge Protective Device (SPD)

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

UL (America):

Standards: UL 1449 Type 1CA / 4CA

File No.: E322662

UL_TFMOV_TFMOV20M_SETsafe & SETfuse.pdf.pdf

cUL (Canada):

Standards: CSA C22.2 No. 269

File No.: E322662

cUL_TFMOV_SETsafe & SETfuse.pdf.pdf

TUV (Germany):

Standards: EN / IEC 61643-11 T2, EN / IEC 61643-31 T2

File No.: J50493459, J50497919

TUV_TFMOV_TFMOV20M(IEC 61643-31)_SETsafe & SETfuse.pdf

TUV_TFMOV_TFMOV20M(IEC 61643-11)_SETsafe & SETfuse.pdf

CE (European Union):

Standards: EN / IEC 61643-11 T2, EN / IEC 61643-31 T2

File No.: AN 50494943, AN 50497842

CE_TFMOV_TFMOV20M(IEC 61643-11)_SETsafe & SETfuse.pdf

CE_TFMOV_TFMOV20M(IEC 61643-31)_SETsafe & SETfuse.pdf

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..

Process:

Online Inspection and Function Test 100%, etc..

In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..

Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..

Reliability Test:

AQL Sampling Test.

Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..

Agency Information:

Safety Certificate Agency Annual, Quarterly Audits. Include UL, cUL, VDE, TUV, KC, PSE, CCC. etc..

Quality Management System:

TUV Approved and Issued Certificate.

SETsafe | SETfuse

SET

Thermally Protected Varistors - Mechanically Off Type Thermally Protected Varistors (TFMOV) are thermally protected varistors. TFMOVs have all the characteristics of a thermally protected varistor (MOV), but are also thermally protected. there are two types of deterioration of MOVs: natural deterioration due to long term operation, and deterioration due to an abnormal surge. When a surge occurs, the leakage current of the degraded MOV increases continuously, causing the surface temperature of the MOV to rise continuously and the possibility of fire. At this time, the heat of the MOV in TFMOV is conducted to the cryogenic alloy solder joint, which senses the abnormal temperature and acts (fuses), driving the spring slider to cut off the circuit, disconnecting the MOV from the main circuit and thus protecting the entire circuit, as well as the MOV itself will not continue to heat up, and the phenomenon of catching fire.
