2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

RXF RXF21SC_SETsafe & SETfuse.pdf

2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

RXF RXF21SC_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Xiamen SET Electronics Co., Ltd.

● Surge Protection

● Over Current Protection

● Inrush Current Protection

● Miniaturized Product

● RoHS & REACH Compliant

Through Hole

Axial, Radial

● Switch Mode Power Supply (SMPS)

● Adapters

● LED Drivers

● Small Power Home Appliances

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

UL (America):

Standards: UL 1412

File No.: E324712

UL_ RXF_SETsafe & SETfuse.pdf

cUL (Canada):

Standards: UL 1412

File No.: E324712

cUL_ RXF_SETsafe & SETfuse.pdf

VDE (Germany):

Standards: IEC 62368-1

File No.: 40035527

VDE_RXF_SETsafe & SETfuse.pdf

CQC (China):

Standards: SJ 2865

File No.: CQC10001049760

CQC_RXF_RXF21SC_SETsafe & SETfuse.pdf

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..

Process:

Online Inspection and Function Test 100%, etc..

In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..

Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..

Reliability Test:

AQL Sampling Test.

Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..

Agency Information:

Safety Certificate Agency Annual, Quarterly Audits. Include UL, cUL, VDE, TUV, KC, PSE, CCC. etc..

Quality Management System:

TUV Approved and Issued Certificate.

SETsafe | SETfuse

SET

Fusible Wirewound Resistor (RXF) is a power resistor, which is made by winding a resistive element on a ceramic core, and the core is coated by insulation coating. As a Protective Component, RXF works as a fixed resistor in normal operation, and is designed to open the circuit under the overload condition.

SETsafe | SETfuse RXF is attractive owing to its Miniaturized Size and Superior Properties and it has already been approved by UL, cUL, CQC, VDE. It also complies with RoHS, REACH.

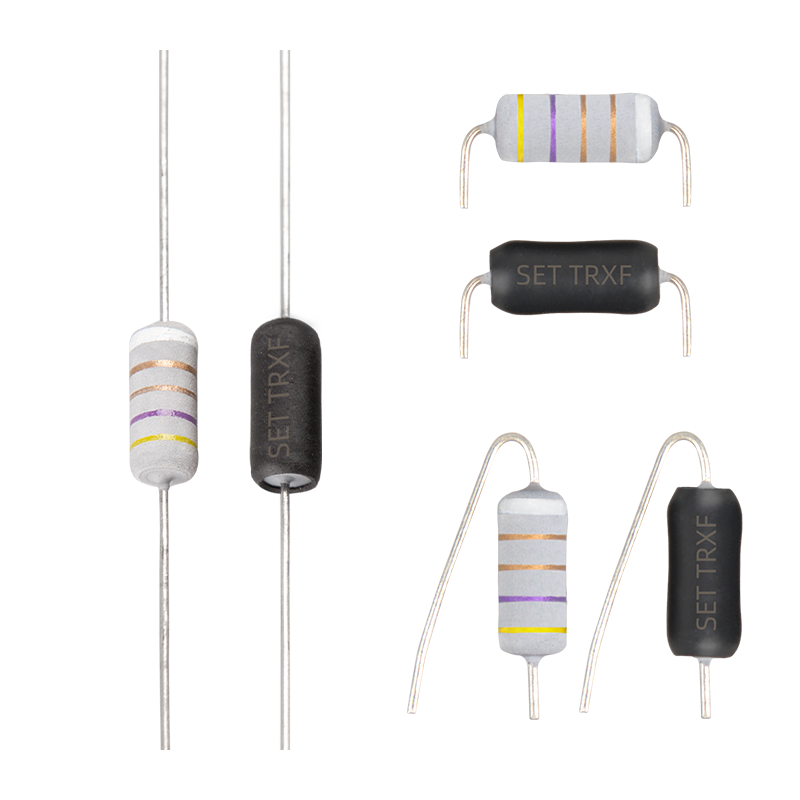

RXF21SC series

Recommended Reasons: Miniaturization. Over Current and Over Temperature Double Protection (Good Thermal Coupling Effect). Good Inrush Current Suppression and Lightning Surge Suppression Function.

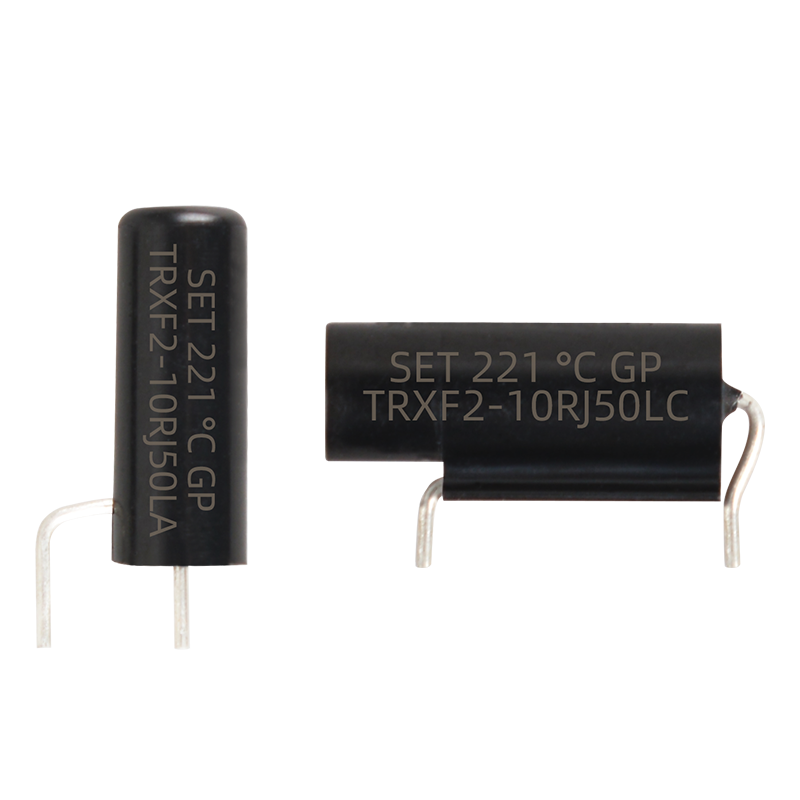

TRXF2 series

Power Type (P): 2 W
Rated Resistance (R): 0.27 ~ 1000 Ω

Resistance Tolerance: 5% / 10%
Rated Functioning Temp. (T_f): 150 / 221 ℃

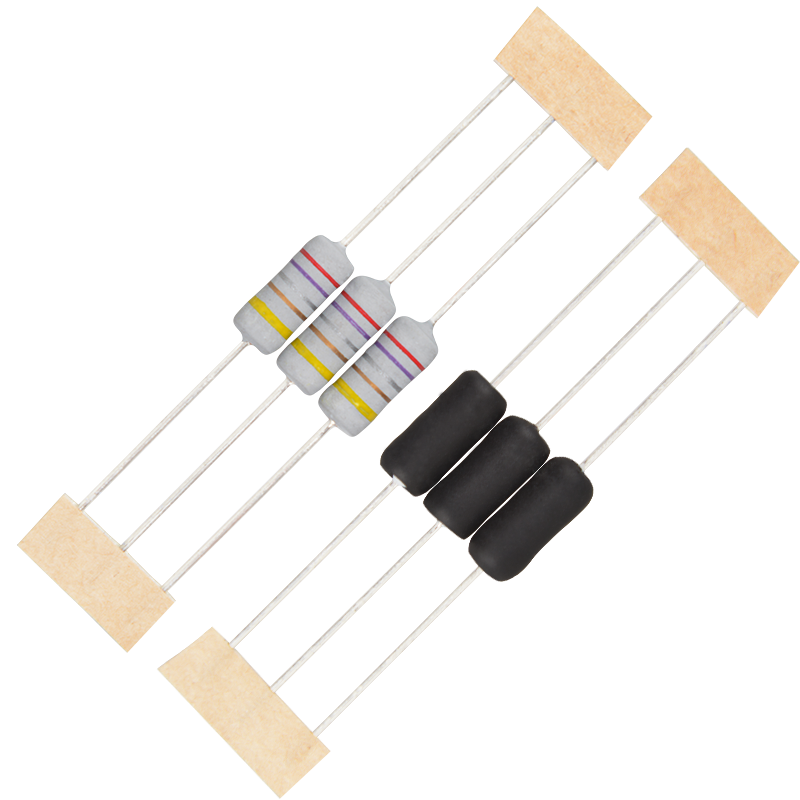

TRXF2 (Axial Type) series

Power Type (P): 2 W
Rated Resistance (R): 0.27 ~ 1000 Ω

Resistance Tolerance: 5% / 10%
Rated Functioning Temp. (T_f): 221 ℃
