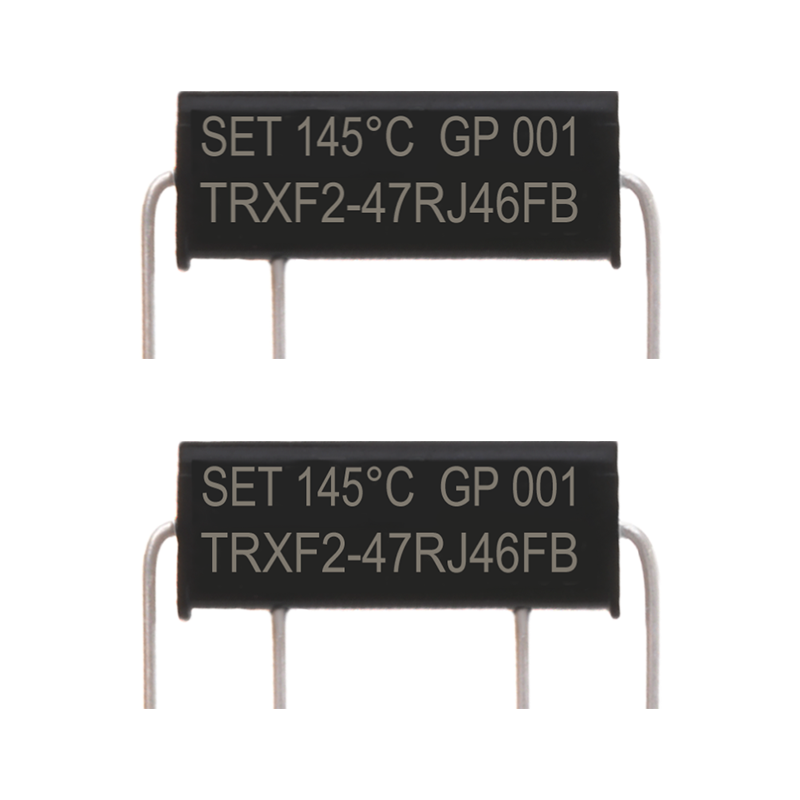

Thermal-Link & Fusing Resistor (TRXF) - Active Protection
TRXF2 series×

TRXF2 series

Power Type (P): 2 W

Rated Resistance (R): 1 ~ 1000 Ω

Resistance Tolerance: 5% / 10%

Rated Functioning Temp. (Tf): 115 ~ 150 ℃

Datasheet
Manufacturer
Technology
Features
Mounting Style
Termination Style
Applications
Design Standards & Agency Approvals
Quality Assurance
Brand
Tradename

Datasheet

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

TRXF(Active Protection) TRXF2_SETsafe & SETfuse.pdf

2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

TRXF TRXF2(Active Protection) SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Technology

Features

● Patented Product

● Over Temp. Protection

● Over Current Protection

● Miniaturized Product

● RoHS & REACH Compliant

Mounting Style

Through Hole

Termination Style

Radial

Applications

● LED Drivers

● Electric Blanket

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION
