2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below.

OTCO RB_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Samples requests, please click the link.

https://www.setsafe.com/Support/Sample-Request.html

or

Please contact: sales@SETfuse.com

Xiamen SET Electronics Co., Ltd.

● Compact Size

● Metal Case

● Organic Thermal Pellet

● Non-Resettable

● High Accuracy of Functioning Temp

● Low Resistance

● RoHS & REACH Compliant

-- Through-Hole.

-- Brazing.

-- Spot Welding.

-- Riveting.

-- Crimping.

Axial

● Small Home Appliances (Such as Electric Cooker, Bread Maker, Coffee Machine, Soymilk, etc.)

● Comfort Home Appliances (Such as Washing Machine, Refrigerator, Air Conditioner, etc.)

● Personal Care Appliances (Such as Hair Dryer, Hair Straightener, Electric Iron, etc.)

● Commercial Appliances (Such as Printer, Scanner, Fax Machine etc.)

● Automobile Filed (Such as Air Conditioner, Heated Seat, etc.)

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

CCC (China):

Standards: GB/T 9816

File No.: 2020980205000192

CCC_OTCO_RB_SETsafe & SETfuse.pdf

● Other Temp.

● The Length of Lead

● Lead Cutting

● Lead Forming

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..

Process:

Online Inspection and Function Test 100%, etc..

In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..

Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..

Reliability Test:

AQL Sampling Test.

Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..

Agency Information:

Safety Certificate Agency Annual, Quarterly Audits. Include UL, cUL, VDE, TUV, KC, PSE, CCC. etc..

Quality Management System:

TUV Approved and Issued Certificate.

SETsafe | SETfuse

SET

Organic Thermal-Link (OTCO) is defined as a non-resettable protective device, functioning one time only. It mainly consists of metal case, spring, sliding contact and thermal pellet. When the Thermal-Link senses abnormal heat and temp. reaches the predetermined fusing temp., thermal pellet melts and the sliding contact separates from the isolated lead with the assistance of the trip spring, thereby the circuit is disconnected

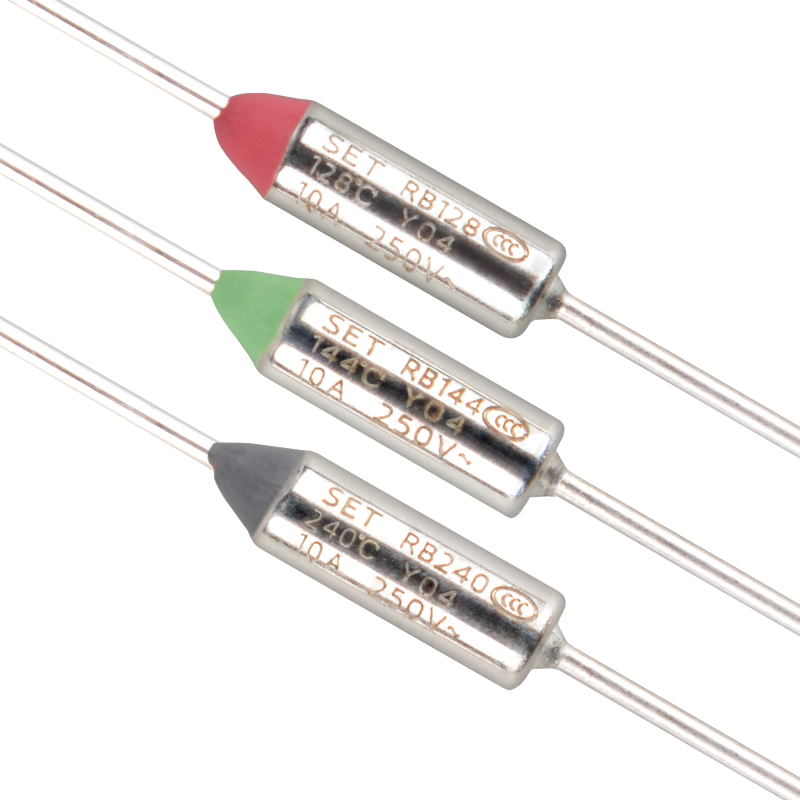

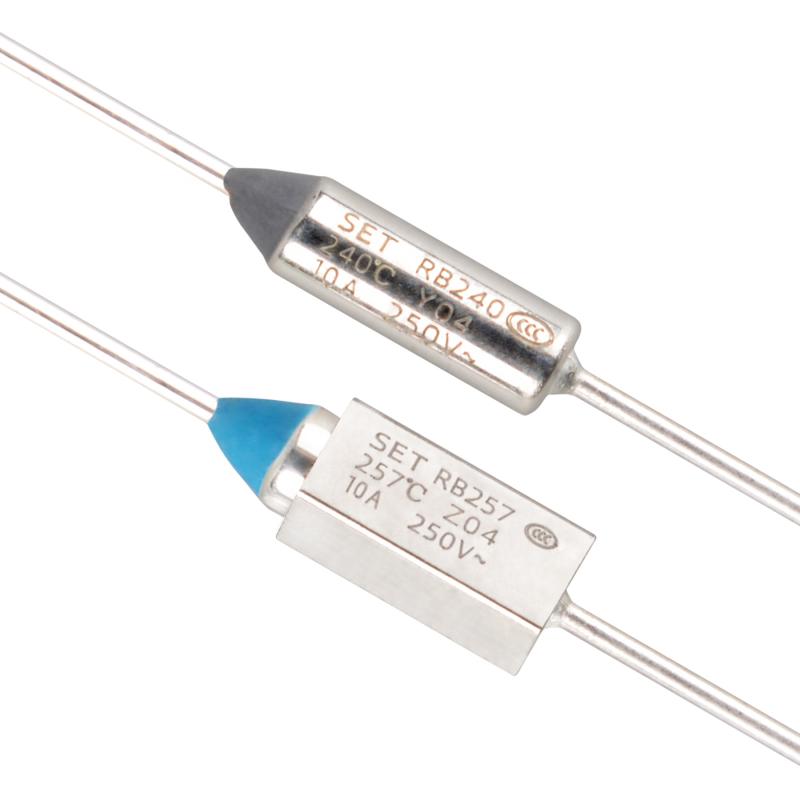

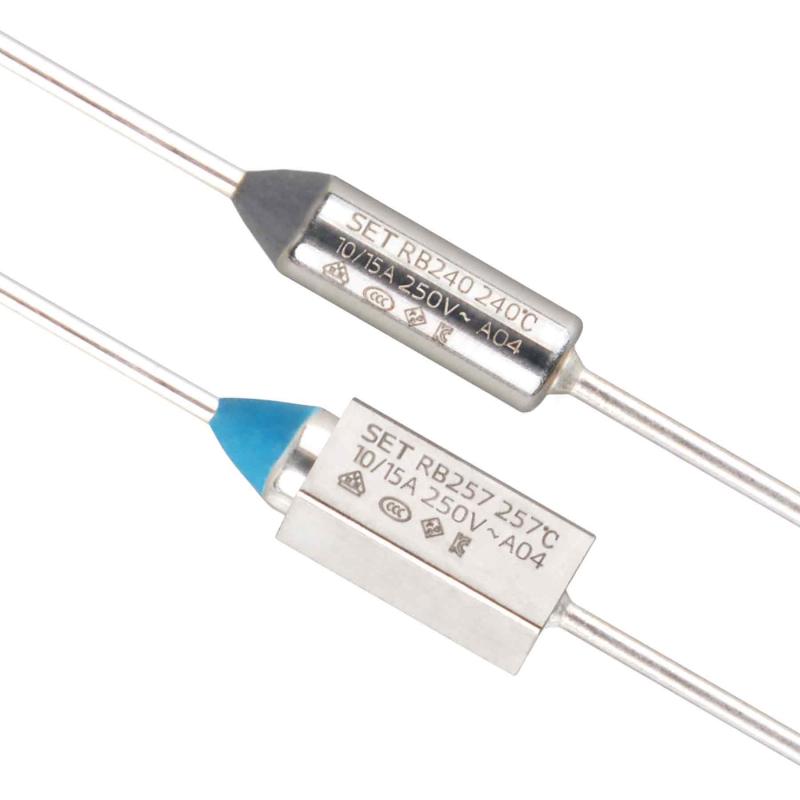

SETsafe | SETfuse Organic Thermal-Link (OTCO) RB series Rated Functioning Temp. from 72 °C to 310 °C, Rated Current: 10 A, safety certification Includes  CCC, and complies with RoHS and REACH.
