2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

ATCO XG(Radial)_SETsafe & SETfuse.pdf

2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

ATCO XG(Radial)_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Xiamen SET Electronics Co., Ltd.

● Transparent Plastic Case

● Non-Resettable

● High Accuracy of Functioning Temp.

● Make a Mounting Hole

● RoHS & REACH Compliant

Through Hole

Radial

● Lamps

● Switched-Mode Power Supplies

● Home Electrical Appliances

● Batteries

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

UL (America):

Standards: UL 60691

File No.: E214712

UL_ATCO_XG0&XG18&XG1&XG2&XG3&XG4&XG8&XG5&XG9&XG6&XG7&XG32&XG31_SETsafe & SETfuse.pdf

cUL (Canada):

Standards: CAN-CSA-E60691

File No.: E214712

cUL_ATCO_XG0&XG18&XG1&XG2&XG3&XG4&XG8&XG5&XG9&XG6&XG7&XG32&XG31_SETsafe & SETfuse.pdf

TUV (Germany):

Standards: EN 60691

File No.: R50384415

TUV_ATCO_XG_SETsafe & SETfuse.pdf

PSE (Japan):

Standards: J60691

File No.: PSE16021063 / PSE16021064 / PSE16021065 / PSE16021066 / PSE16021067 / PSE16021068 / JET2121-32001-2021 / JET2121-32001-2022 / JET2121-32001-2023 / JET2121-32001-2024 / JET2121-32001-2025 / JET2121-32001-2026 / JET2121-32001-2027 / JET2121-32001-2028

PSE_ATCO_XG_SETsafe & SETfuse.pdf

PSE_ATCO_≤80℃_Ir≤5A_XG_SETsafe & SETfuse.pdf

PSE_ATCO_＞80℃~≤100℃_Ir≤5A_XG_SETsafe & SETfuse.pdf

PSE_ATCO_＞100℃~≤120℃_Ir≤5A_XG_SETsafe & SETfuse.pdf

PSE_ATCO_＞120℃~≤140℃_Ir≤5A_XG_SETsafe & SETfuse.pdf

PSE_ATCO_＞140℃~160℃_Ir≤5A_XG_SETsafe & SETfuse.pdf

PSE_ATCO_＞180℃~≤200℃_Ir≤5A_XG_SETsafe & SETfuse.pdf

PSE_ATCO_＞200℃~≤220℃_Ir≤5A_XG_SETsafe & SETfuse.pdf

PSE_ATCO_＞220℃~≤240℃_Ir≤5A_XG_SETsafe & SETfuse.pdf

CCC (China):

Standards: GB/T 9816

File No.: 2020980205000195

CCC_ATCO_XG_SETsafe & SETfuse.pdf

● Other Temp.

● The Length of Lead Wires

● Taping Packing Available

● Lead Wires can be Insulated

● Tinned Copper Wires or CP Wires

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..

Process:

Online Inspection and Function Test 100%, etc..

In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..

Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..

Reliability Test:

AQL Sampling Test.

Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..

Agency Information:

Safety Certificate Agency Annual, Quarterly Audits. Include UL, cUL, VDE, TUV, KC, PSE, CCC. etc..

Quality Management System:

TUV Approved and Issued Certificate.

SETsafe | SETfuse

SET

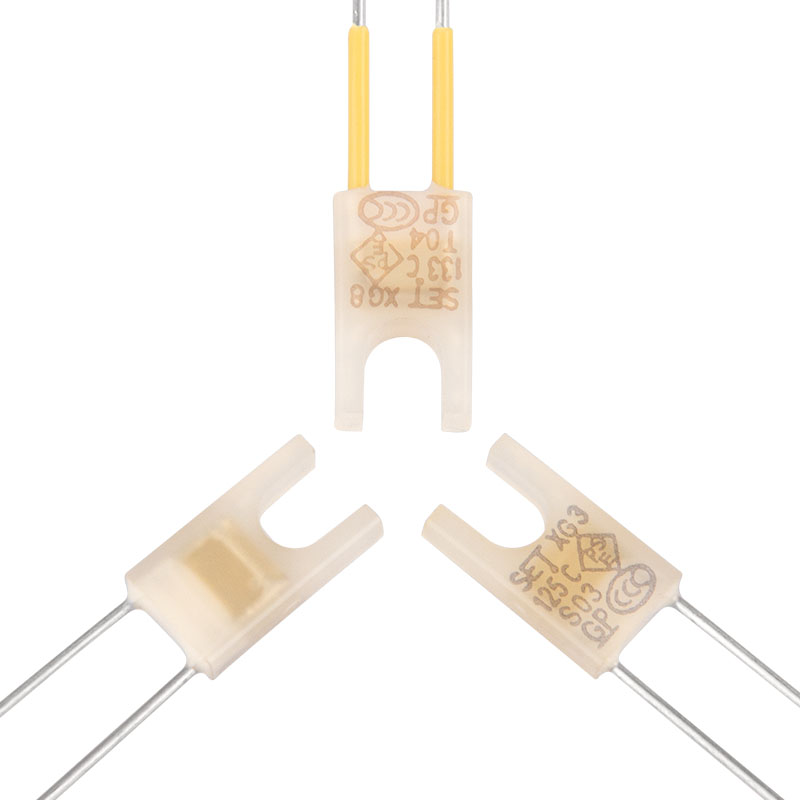

Alloy Thermal-Link / Alloy Thermal Cutoff (ATCO) is defined as a non-resettable protective device functioning one time only. It is widely used in electrical equipment. ATCO is mainly consist of fusible alloy, flux resin, case, sealant and lead wires. Normally, fusible alloy is jointed to the two lead wires. Under abnormal conditions, when the temp. reaches to the fusing temp. of ATCO, the fusible alloy melts and quickly retracts to the two lead wire ends with the aid of the flux resin and disconnects the circuit completely.

XG series
