2024-2026 Year Version.

ATCO SE(Radial)_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Samples requests, please click the link.

https://www.setsafe.com/Support/Sample-Request.html

or

Please contact: sales@SETfuse.com

Xiamen SET Electronics Co., Ltd.

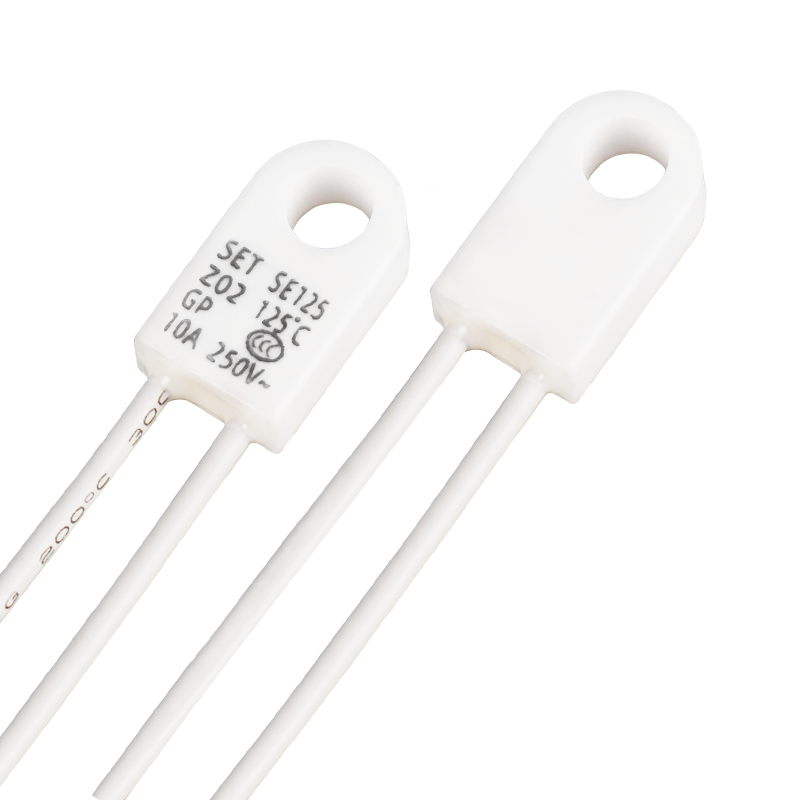

● Ceramic Case

● Make a Mounting Hole

● Lead Wires Insulated

● Non-Resettable

● High Accuracy of Functioning Temp.

● RoHS & REACH Compliant

Through Hole

Radial

● Electric Heating Appliances

● Home Electrical Appliances

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

PSE (Japan):

Standards: J60691

File No.: JET2121-32001-2029 / JET2121-32001-2030 / JET2121-32001-2031

PSE_ATCO_＞100℃_≤120℃_5A＜Ir≤15A_SE_SETsafe & SETfuse.pdf

PSE_ATCO_＞120℃_≤140℃_5A＜Ir≤15A_SE_SETsafe & SETfuse.pdf

PSE_ATCO_＞140℃_≤160℃_5A＜Ir≤15A_SE_SETsafe & SETfuse.pdf

CCC (China):

Standards: GB/T 9816.1

File No.: 2020980205000017

CCC_ATCO_SE_SETsafe & SETfuse.pdf

● Other Temp.

● The Length of Lead Wires

● Lead Wires can Make Pluggable Terminals

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..

Process:

Online Inspection and Function Test 100%, etc..

In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..

Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..

Reliability Test:

AQL Sampling Test.

Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..

Quality Management System:

TUV Approved and Issued Certificate.

Download the certificate, please click the link.

https://www.setsafe.com/Support/Management-System/ISO-Certificate-Download.html

SETsafe | SETfuse

SET

Alloy Thermal-Link / Alloy Thermal Cutoff (ATCO) is defined as a non-resettable protective device functioning one time only. It is widely used in electrical equipment. ATCO is mainly consist of fusible alloy, flux resin, case, sealant and lead wires. Normally, fusible alloy is jointed to the two lead wires. Under abnormal conditions, when the temp. reaches to the fusing temp. of ATCO, the fusible alloy melts and quickly retracts to the two lead wire ends with the aid of the flux resin and disconnects the circuit completely.

SE series
