Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Xiamen SET Electronics Co., Ltd.

● Ceramic Case

● Non-Resettable

● High Accuracy of Functioning Temp.

● RoHS & REACH Compliant

Through Hole

Axial

● Electric Blankets

● Electric Aroma Diffusers

● Home Electrical Appliances

● Motors

● Lamps

● Switched-Mode Power Supplies

● Transformers

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

UL (America):

Standards: UL60691

File No.: E214712

UL_ATCO_H0&H18&H21&H1&H2&H3&H4&H8&H5&H9&H13&H6&H7&H32&H31_SETsafe & SETfuse.pdf

cUL (Canada):

Standards: CAN-CSA-E60691

File No.: E214712

cUL_ATCO_H0&H18&H21&H1&H2&H3&H4&H8&H5&H9&H13&H6&H7&H32&H31_SETsafe & SETfuse.pdf

TUV (Germany):

Standards: EN 60691

File No.: R50259420

TUV_ATCO_H&V_SETsafe & SETfuse.pdf

PSE (Japan):

Standards: J60691

File No.: PSE15020870 / PSE15020871 / PSE15020872 / PSE15020873 / PSE15020874 / PSE15020875 / PSE15020876 / JET2121-32001-2021 / JET2121-32001-2022 / JET2121-32001-2023 / JET2121-32001-2024 / JET2121-32001-2025 / JET2121-32001-2026 / JET2121-32001-2027 / JET2121-32001-2028

PSE_ATCO_H0&H18&H1&H2&H3&H4&H8&H5&H9&H13&H6&H7&H16&H32&H31_SETsafe & SETfuse.pdf

PSE_ATCO_≤80℃_Ir≤5A_H_SETsafe & SETfuse.pdf

PSE_ATCO_＞80℃~≤100℃_Ir≤5A_H_SETsafe & SETfuse.pdf

PSE_ATCO_＞100℃~≤120℃_Ir≤5A_H_SETsafe & SETfuse.pdf

PSE_ATCO_＞120℃~≤140℃_Ir≤5A_H_SETsafe & SETfuse.pdf

PSE_ATCO_＞140℃~160℃_Ir≤5A_H_SETsafe & SETfuse.pdf

PSE_ATCO_＞180℃~≤200℃_Ir≤5A_H_SETsafe & SETfuse.pdf

PSE_ATCO_＞200℃~≤220℃_Ir≤5A_H_SETsafe & SETfuse.pdf

PSE_ATCO_＞220℃~≤240℃_Ir≤5A_H_SETsafe & SETfuse.pdf

KC (Korea):

Standards: K60691

File No.: SU05023-11001 / SU05023-11002 / SU05023-11003 / SU05023-22001

KC_ATCO_H0&H18&H1&H2&H3&H4&H8&H5&H9&H13&H6&H7_SETsafe & SETfuse.pdf

 KC_ATCO_V17&H17&B17&C17_SETsafe & SETfuse.pdf

CCC (China):

Standards: GB/T 9816

File No.: 2020980205000186

CCC_ATCO_B&H_SETsafe & SETfuse.pdf

CB:

Standards: CN55895

File No.: IEC 60691:2015, IEC 60691:2015/AMD1:2019

CB_ATCO_H17_SETsafe & SETfuse.pdf

● Other Temp.

● The Length of Lead Wires

● Taping Packing Available

● Lead Wires can be Insulated

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..

Process:

Online Inspection and Function Test 100%, etc..

In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..

Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..

Reliability Test:

AQL Sampling Test.

Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..

Agency Information:

Safety Certificate Agency Annual, Quarterly Audits. Include UL, cUL, VDE, TUV, KC, PSE, CCC. etc..

Quality Management System:

TUV Approved and Issued Certificate.

SETsafe | SETfuse

SET

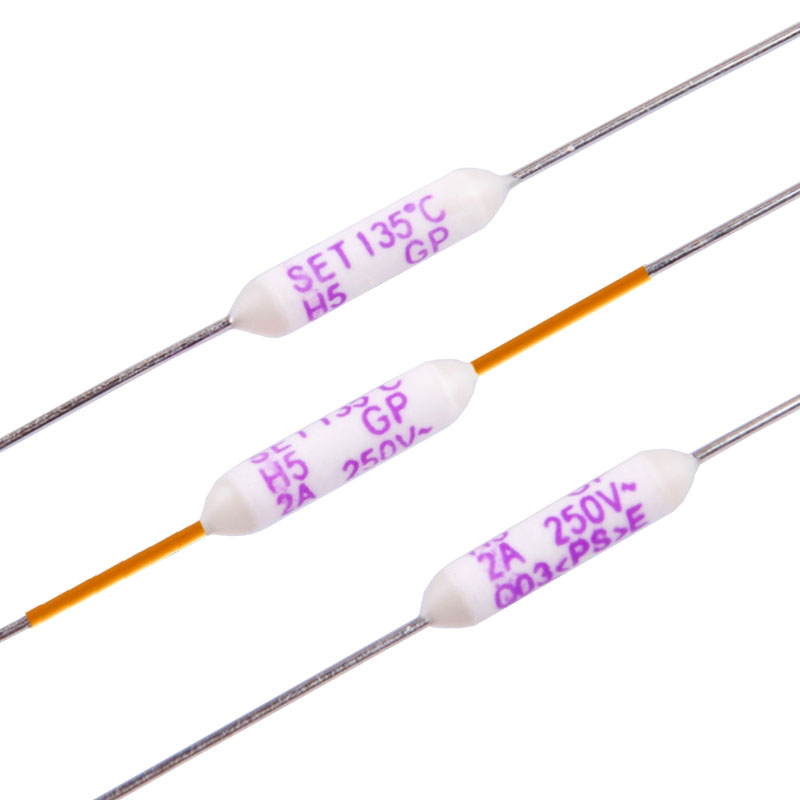

Alloy Thermal-Link / Alloy Thermal Cutoff (ATCO) is defined as a non-resettable protective device functioning one time only. It is widely used in electrical equipment. ATCO is mainly consist of fusible alloy, flux resin, case, sealant and lead wires. Normally, fusible alloy is jointed to the two lead wires. Under abnormal conditions, when the temp. reaches to the fusing temp. of ATCO, the fusible alloy melts and quickly retracts to the two lead wire ends with the aid of the flux resin and disconnects the circuit completely.

H series
