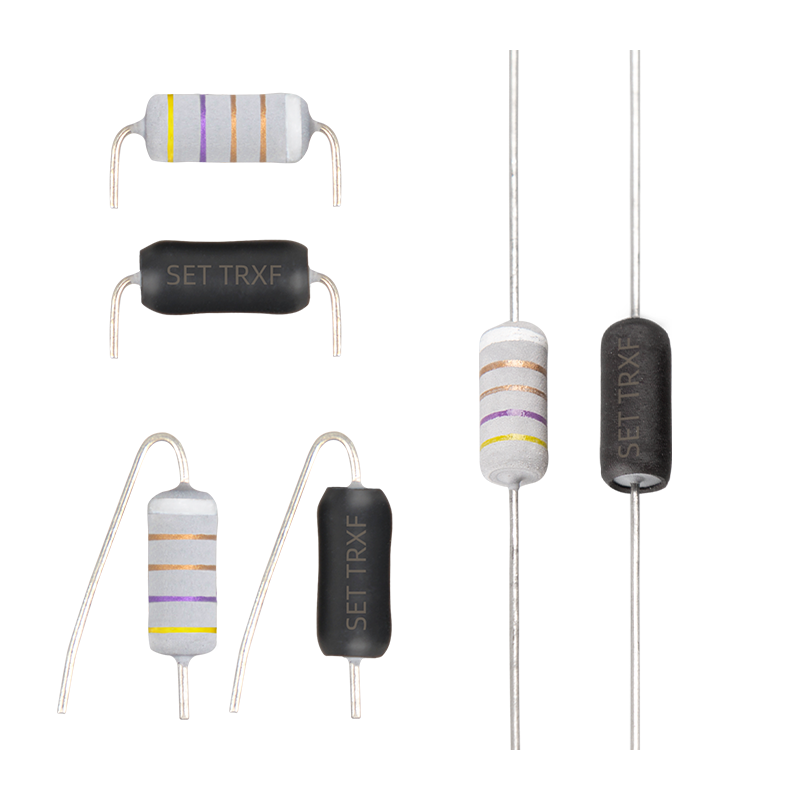

Thermal-Link & Fusing Resistor (TRXF) is an unique type of Power Resistor, with Over Temp. and Over Current Protections. The Alloy Thermal-Link (ATCO) is built in the core of Fusible Wirewound Resistor (RXF) and in series with RXF.
SETsafe | SETfuse TRXF has the same physical size as ordinary RXF as well as large fault current protection. Besides, TRXF can effectively solve the hidden danger of continuous abnormal heat that ordinary RXF may cause when small fault current happens.
● Patented Product
● Over Temp. Protection
● Surge Protection
● Inrush Current Protection
● Small Fault Current Protection
● Short Circuit Protection
● RoHS & REACH Compliant
Through Hole
Axial
Design Standards & Agency Approvals
ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION
The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com
UL (America):
Standards: UL 1412
File No.: E324712
UL_TRXF & TRXF(Axial Type)_SETsafe & SETfuse.pdf
TUV (Germany):
Standards: IEC 60065
File No.: 50159751001 (AK Report)
TUV_TRXF_TRXF2(Axial type)_SETsafe & SETfuse.pdf
CQC (China):
Standards: SJ 2865-1988
File No.: CQC18001205501
For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.
Quality Policy.
Qualified Supplier of Raw Materials.
Incoming Quality Control (IQC):
Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..
Process:
Online Inspection and Function Test 100%, etc..
In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..
Final Quality Control (FQC):
AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..
Reliability Test:
AQL Sampling Test.
Outgoing Quality Control (OQC):
Packaging, Labeling, Quantity Inspection, etc..
Agency Information:
Safety Certificate Agency Annual, Quarterly Audits. Include UL, cUL, VDE, TUV, KC, PSE, CCC. etc..
Quality Management System:
TUV Approved and Issued Certificate.
