Thermal-Link & Fusing Resistor (TRXF)
  • Thermal-Link & Fusing Resistor (TRXF)
  • TRXF1 (Axial Type) series×

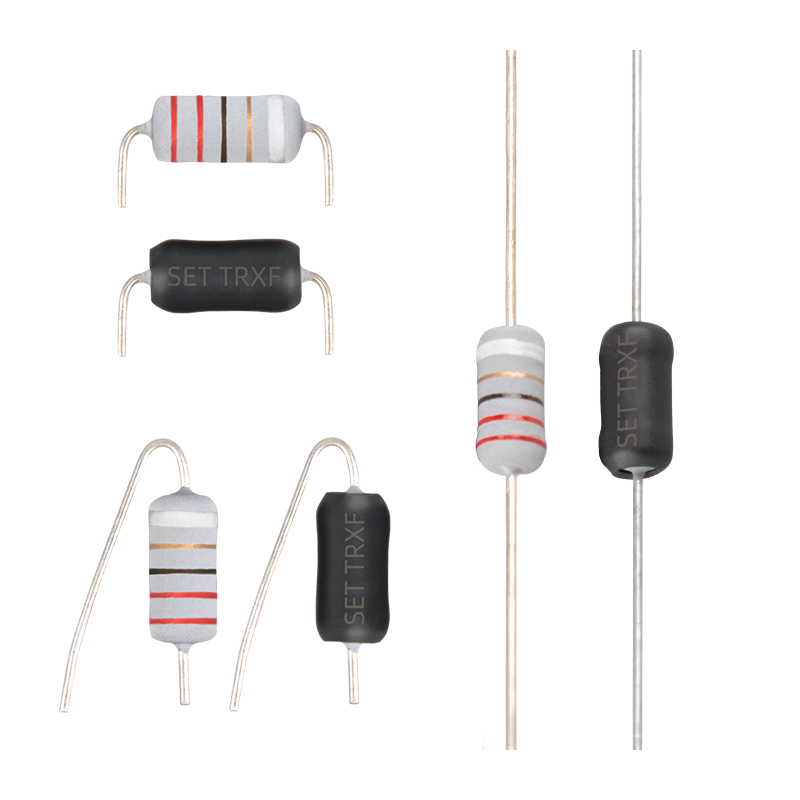

TRXF1 (Axial Type) series

Power Type (P): 1 W

Rated Resistance (R): 0.27 ~ 800 Ω

Resistance Tolerance: 5% / 10%

Rated Functioning Temp. (Tf): 221 ℃

Datasheet

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

TRXF_TRXF1(Axial)_SETsafe & SETfuse.pdf


2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

TRXF TRXF1 (Axial Type)_SETsafe & SETfuse.pdf


Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Technology

Thermal-Link & Fusing Resistor (TRXF) is an unique type of Power Resistor, with Over Temp. and Over Current Protections. The Alloy Thermal-Link (ATCO) is built in the core of Fusible Wirewound Resistor (RXF) and in series with RXF.



SETsafe | SETfuse TRXF has the same physical size as ordinary RXF as well as large fault current protection. Besides, TRXF can effectively solve the hidden danger of continuous abnormal heat that ordinary RXF may cause when small fault current happens.

Features

● Patented Product

● Over Temp. Protection

● Surge Protection

● Inrush Current Protection

● Small Fault Current Protection

● Short Circuit Protection

● RoHS & REACH Compliant

Mounting Style

Through Hole

Applications

● Switch Mode Power Supply (SMPS)

● Adapters

● LED Drivers

● Small Power Home Appliances

Technology Applications.png Markets Applications.png

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com


UL (America):

Standards: UL 1412

File No.: E324712

UL_TRXF & TRXF(Axial Type)_SETsafe & SETfuse.pdf


TUV (Germany):

Standards: IEC 60065

File No.: 50159751001 (AK Report)

TUV_TRXF_TRXF1(Axial type)_SETsafe & SETfuse.pdf


CQC (China):

Standards: SJ 2865-1988

File No.: CQC18001205502

CQC_TRXF_TRXF1(Axial Type)_SETsafe & SETfuse.pdf

Quality Assurance

TRXF Quality Assurance

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.


Quality Policy.


Qualified Supplier of Raw Materials.


Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..


Process:

Online Inspection and Function Test 100%, etc..


In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..


Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..


Reliability Test:

AQL Sampling Test.


Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..


Agency Information:

Safety Certificate Agency Annual, Quarterly Audits. Include UL, cUL, VDE, TUV, KC, PSE, CCC. etc..


Quality Management System:

TUV Approved and Issued Certificate.
