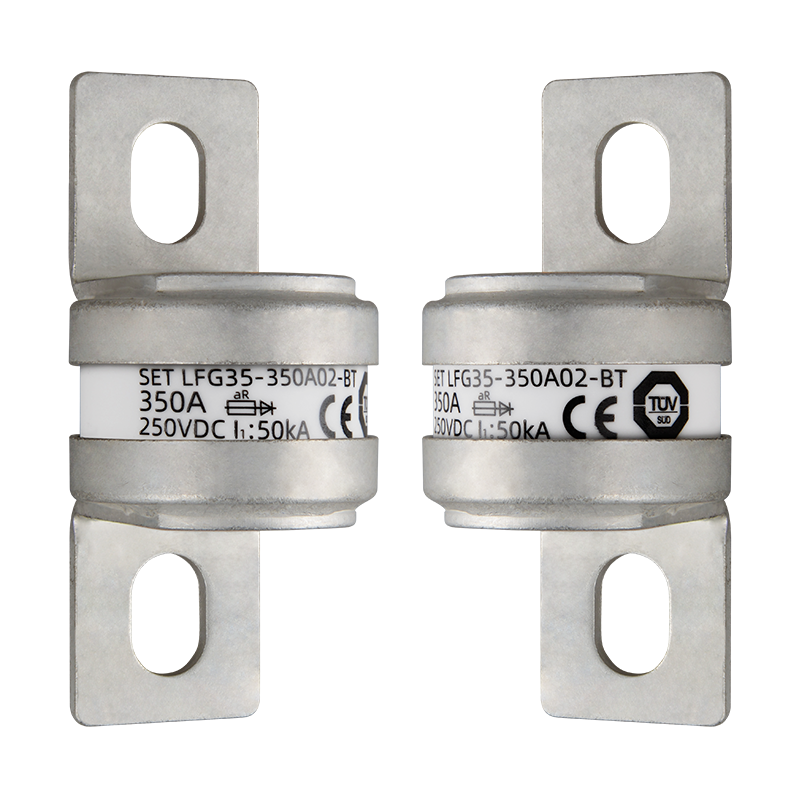

LV Fuses for ESS (Energy Storage System)
LFG35-xxxA02-BT series×

LFG35-xxxA02-BT series

Rated Voltage (Un): 250 VDC

Rated Current (In): 100 ~ 600 A

Breaking Capacity (I1): 50 kA

Utilization Category: aR

Datasheet
Manufacturer
Features
Mounting Style
Termination Style
Applications
Design Standards & Agency Approvals
Customization
Quality Assurance
Brand
Tradename
Overview
About SETsafe | SETfuse

Datasheet

2024-2026 Year Version.

LV Fuses_LFG35-XXXA02-BT(250 VDC, 100~600 A)_V1.0_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● Rated Voltage: 250 VDC

● Breaking Capacity: 50 kA

● Fusing Characteristics: High Speed Fuse

● Utilization Category: aR

● Good Current Limiting Capability

● Body Size: Ф38 x 31 mm

● RoHS and REACH Compliant, Pb Free

Mounting Style

● Bolt Tag

Termination Style

Bolt down

Applications

● Frequency Converter, Rectifier, Inverter

● Semiconductor Equipment

● Energy Storage System (ESS)

● Motor

● Capacitor

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

TUV

Standards: EN IEC 60269-4

File No.: B 1072210010

TUV_LFG35_SETsafe & SETfuse.pdf

Standards: EN IEC 60269-4

File No.: N8A 1072210011

CE_LFG35_SETsafe & SETfuse.pdf

Customization

If you want to customize the product, please communicate with SETsafe ｜SETfuse.

Quality Assurance

High Quality, High Reliability.

Brand

SETsafe | SETfuse

Tradename

SET

Overview

A low-voltage fuse is an overcurrent protection device designed for low-voltage electrical systems (typically defined as less than 1000 VAC or 1500 VDC). Its primary function is to interrupt fault currents during an overload or short-circuit event by melting its internal element, thereby preventing equipment damage or fire hazards. They are widely applied in all electrical and electronic systems requiring overcurrent protection, such as industrial power distribution systems, household appliances, automotive electronics, and new energy applications.
